KDOT PMS Replacement Project

R-PMS System Use Cases : Model

Use Case Diagram - R-PMS Use Cases - EPMS - KANPAV Modeling link

Jump to:

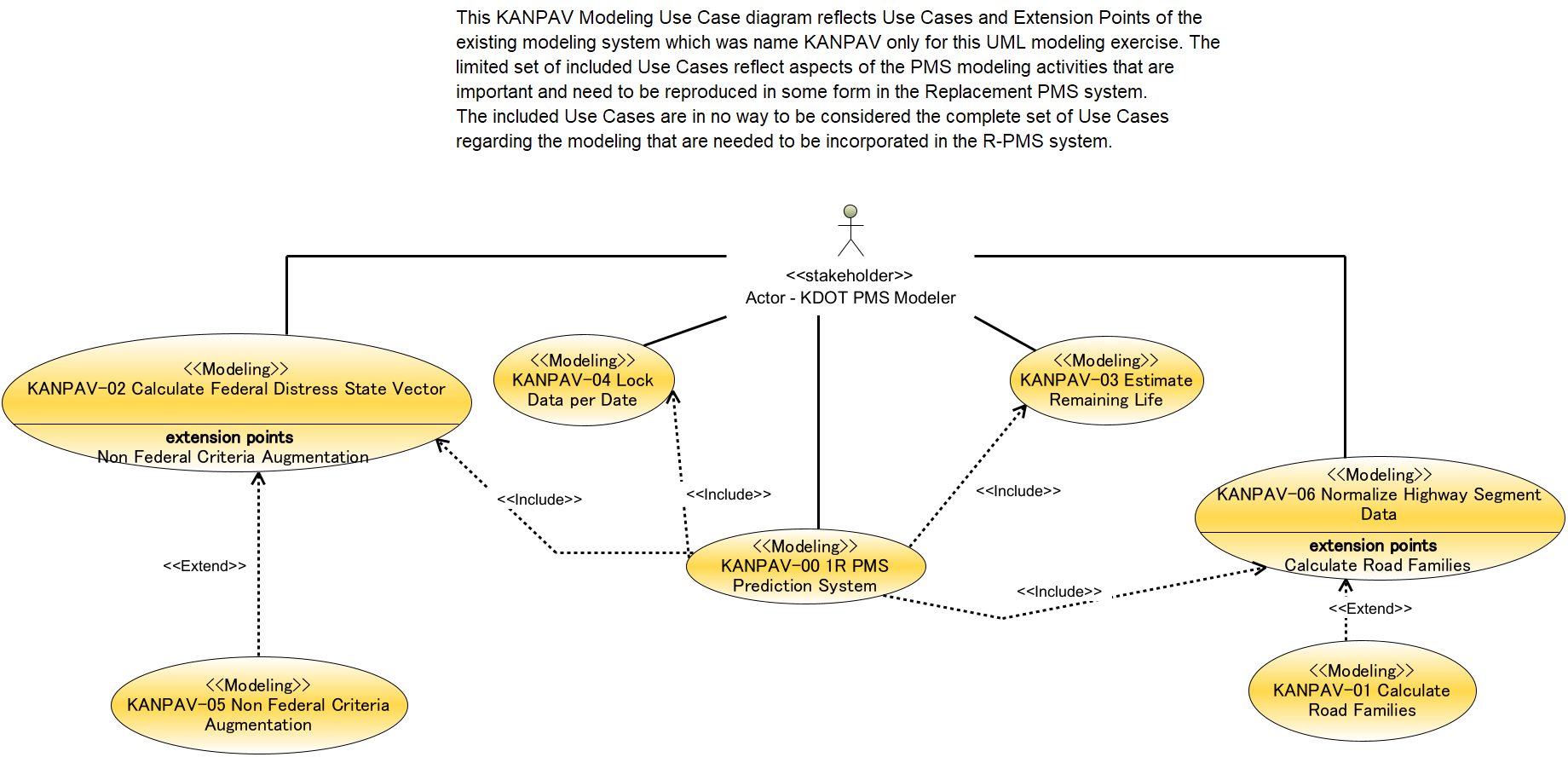

:Association :Association :Association :Association :Include :Include :Extend :Include :Association :Include :Extend This KANPAV Modeling Use Case diagram reflects Use Cases and Extension Points of the existing modeling system which was name KANPAV only for this UML modeling exercise. The limited set of included Use Cases reflect aspects of the PMS modeling activities that are important and need to be reproduced in some form in the Replacement PMS system. The included Use Cases are in no way to be considered the complete set of Use Cases regarding the modeling that are needed to be incorporated in the R-PMS system.:Note KANPAV-06 Normalize Highway Segment Data:Use Case Actor - KDOT PMS Modeler:Actor KANPAV-05 Non Federal Criteria Augmentation:Use Case KANPAV-04 Lock Data per Date:Use Case KANPAV-00 1R PMS Prediction System:Use Case KANPAV-03 Estimate Remaining Life:Use Case KANPAV-02 Calculate Federal Distress State Vector:Use Case KANPAV-01 Calculate Road Families:Use Case
