KDOT PMS Replacement Project

R-PMS System Use Cases : Model

Entity Relationship Diagram - KDOT_RPMS_EPMS(AECOM) link

Jump to:

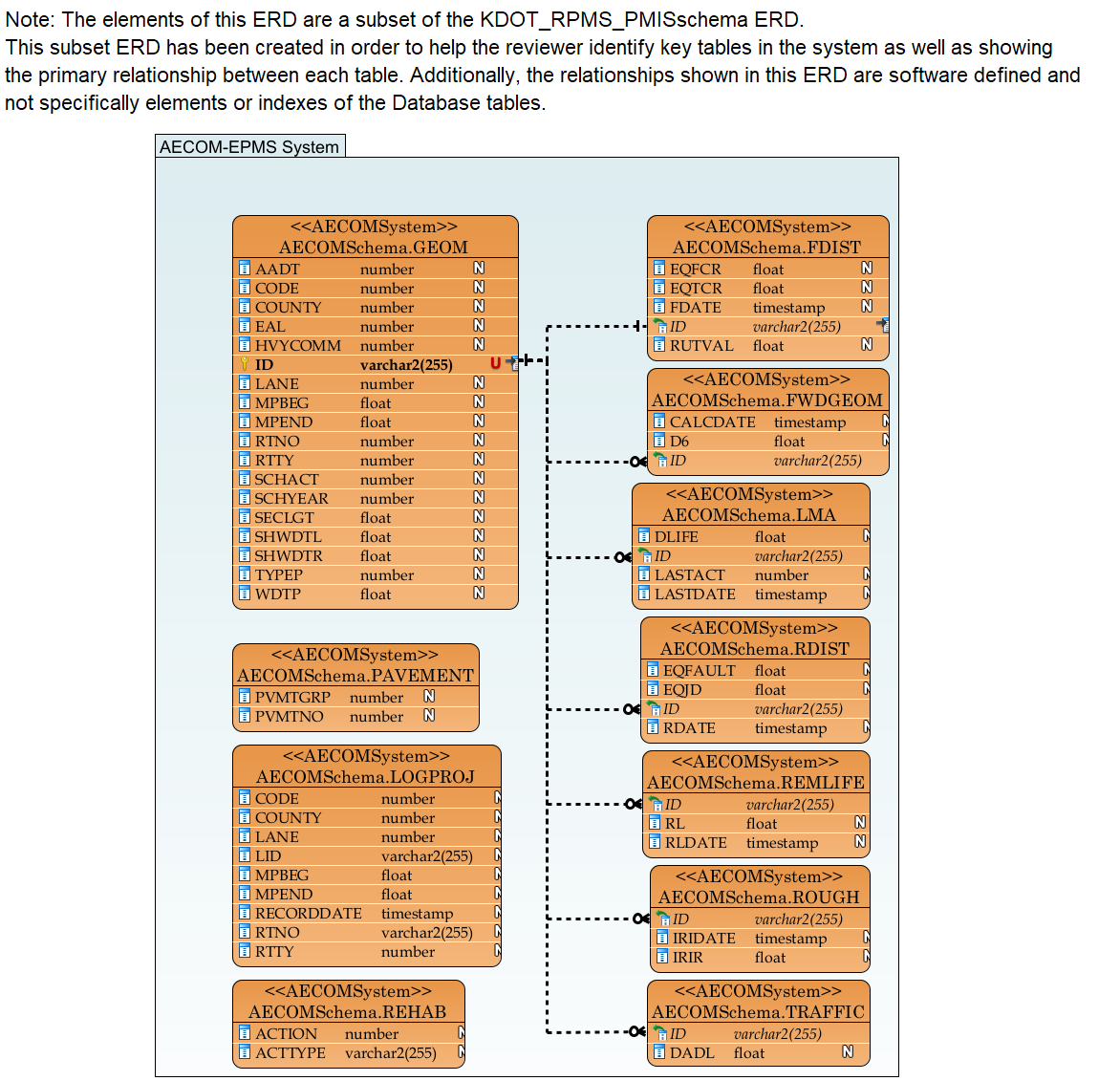

:Relationship :Relationship :Relationship :Relationship :Relationship :Relationship :Relationship :Anchor Note: The elements of this ERD are a subset of the KDOT_RPMS_PMISschema ERD. This subset ERD has been created in order to help the reviewer identify key tables in the system as well as showing the primary relationship between each table. Additionally, the relationships shown in this ERD are software defined and not specifically elements or indexes of the Database tables.:Note TRAFFIC:Entity ROUGH:Entity REMLIFE:Entity REHAB:Entity RDIST:Entity PAVEMENT:Entity LOGPROJ:Entity LMA:Entity FWDGEOM:Entity FDIST:Entity GEOM:Entity AECOM-EPMS System:Package
